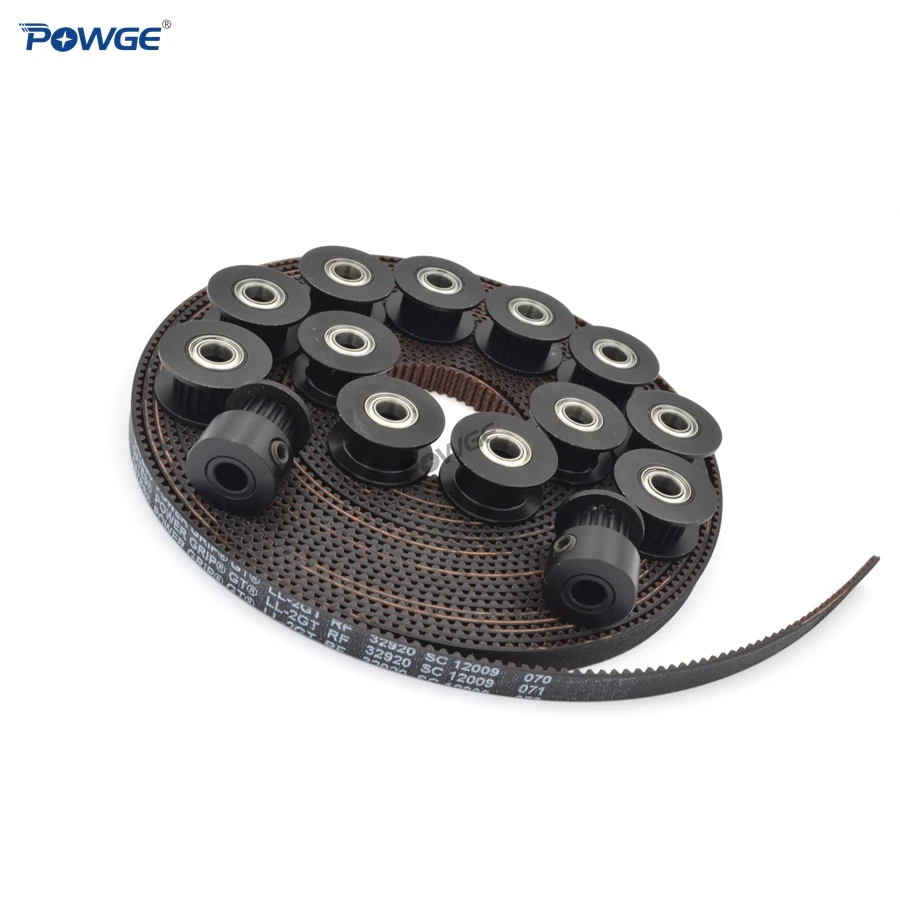

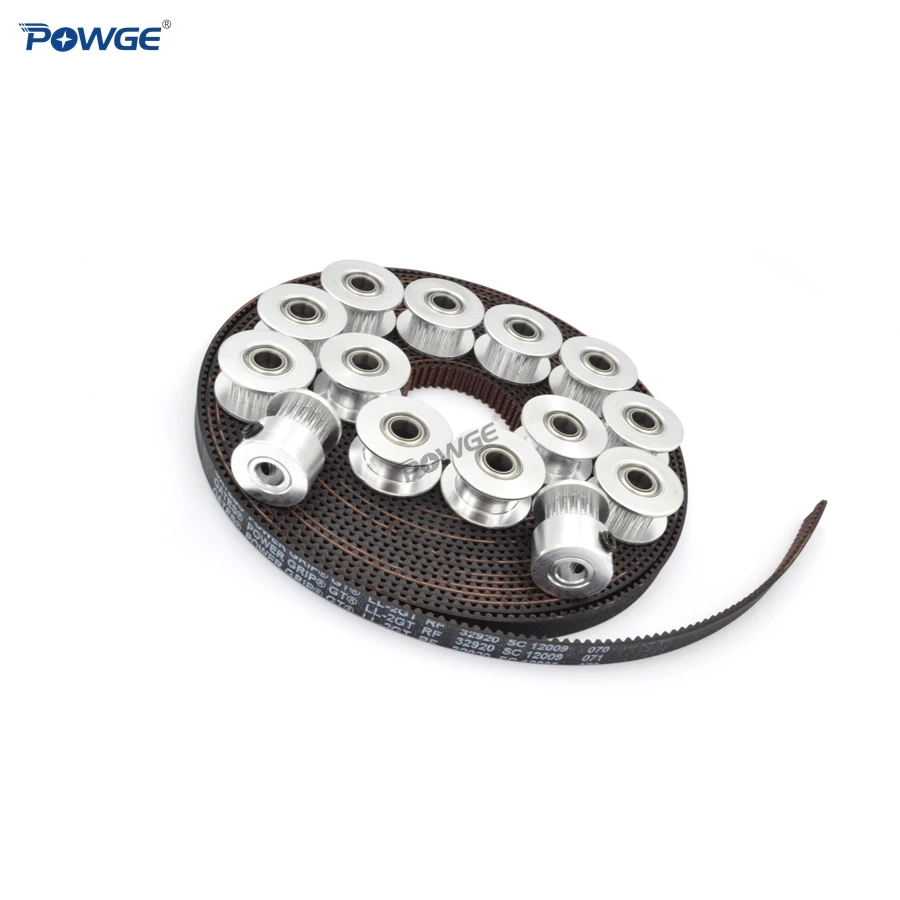

POWGE Jubilee V2.1.2 Motion Set GT2 LL-2GT RF Open Timing Belt 16Teeth drive pulley 20Teeth idler pulley Bore 5mm for Jubilee 3D

POWGE Jubilee V2.1.2 Motion Set GT2 LL-2GT RF Open Timing Belt 16Teeth drive pulley 20Teeth idler pulley Bore 5mm for Jubilee 3D.
Nom de marque:POWGE
Origine:CN (Origine)
Numéro de Modèle:VORON 3D PRINTER V2.4
Standard ou non standard:Standard
Type:Courroie de distribution
Matériau:RUBBER
Personnalisé:YES
Picth:2mm
Teeth Number:16T/20T/80 pulley
Outside Diameter (OD):9.68mm/12.22mm/50.42mm

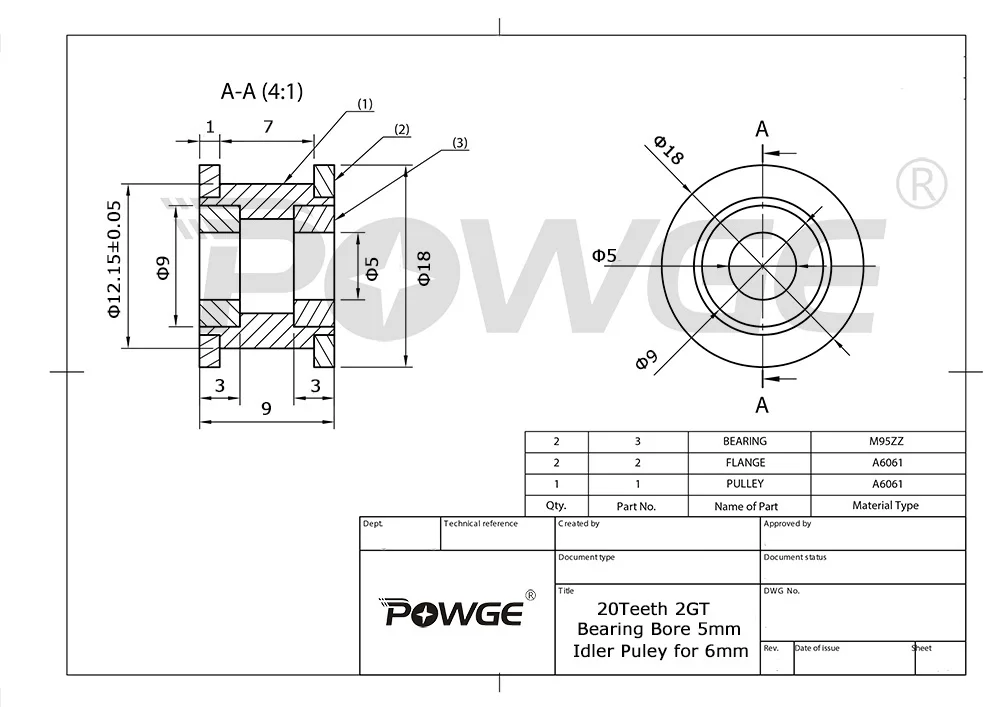

Outside Diameter (OD)-Toothed idler:12.150.05mm
Bore:5mm
Flange:Double flange
screw hole:2xM4 or 2xM5
Material:Pulley is Aluminium and open belt is Rubber
Open belt length:GT2 Open belts LL-2GT-6mm/9mm
Close loop timing belt:188-2GT-6 RF GATES
